PC132 laboratory; Graphing and Least Squares Fitting

Postlab

  1. Here are the post-lab instructions for Graphing and Least Squares Fitting from the lab manual:

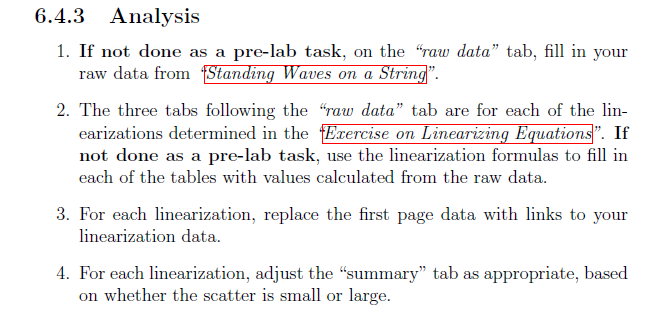

    screenshot of page

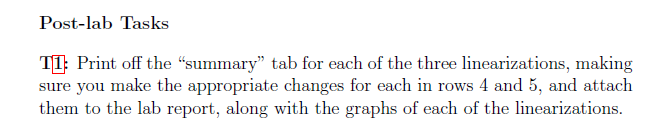

    screenshot of second page
  2. Here are the post-lab instructions for Standing Waves on a String from the lab manual:

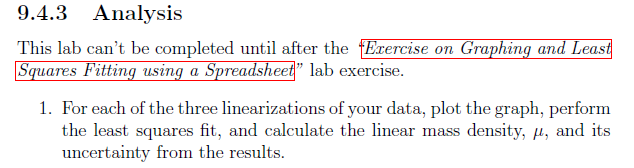

    screenshot of third page

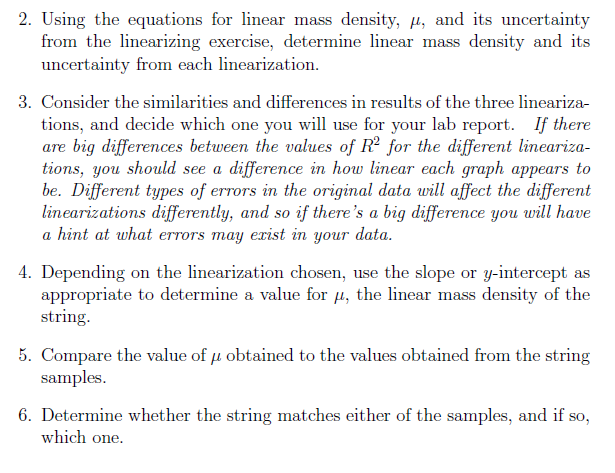

    screenshot of fourth page

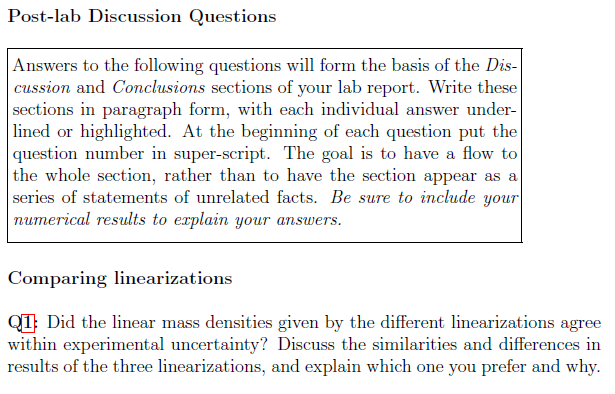

    screenshot of fifth page

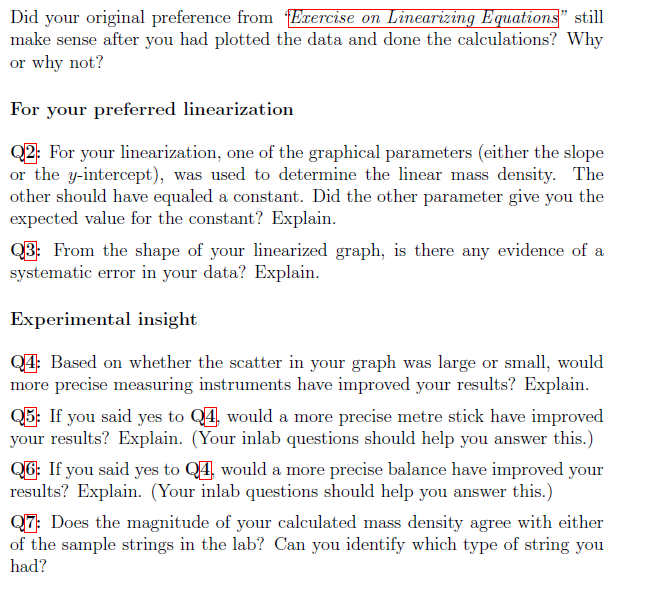

    screenshot of sixth page
