Pages created and updated by Terry Sturtevant Date Posted: May 12, 2017

CP316: Microprocessor Systems and Interfacing

QwikFlash board connectors

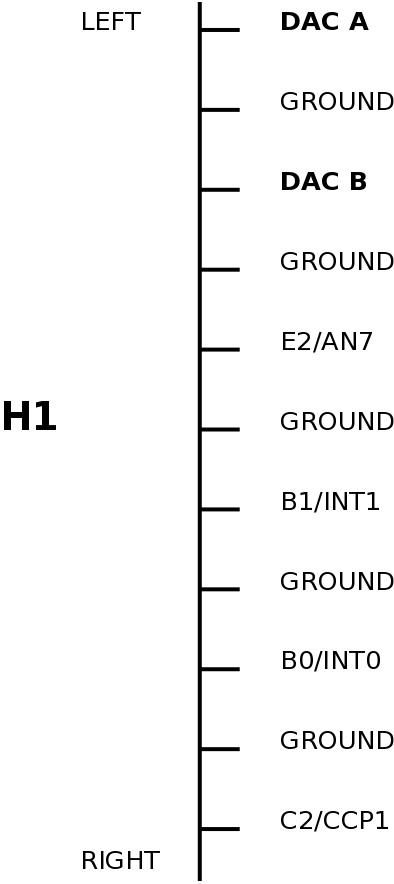

One header (H1) looks like this:
QwikFlash board H1 header

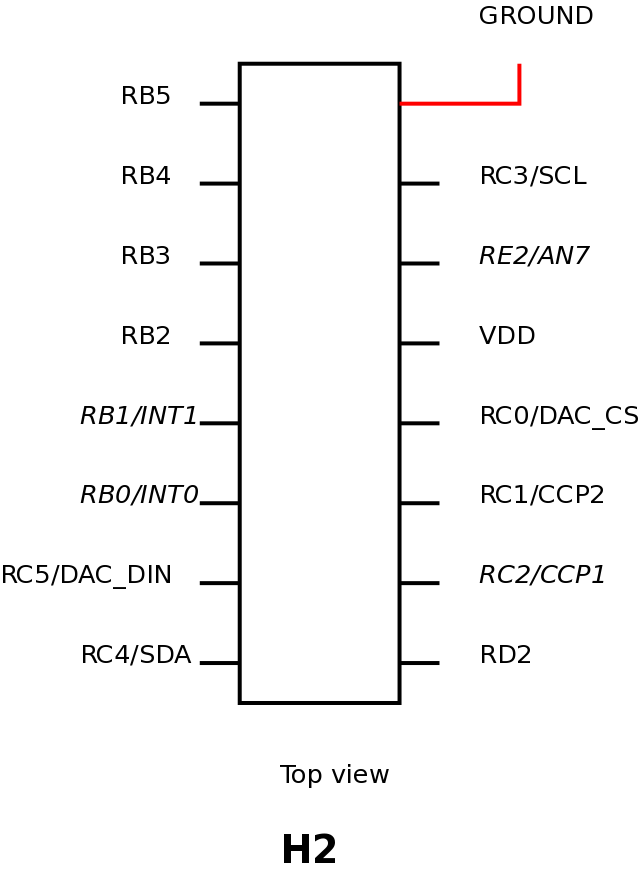

and another (H2) looks like this:
QwikFlash board H2 header

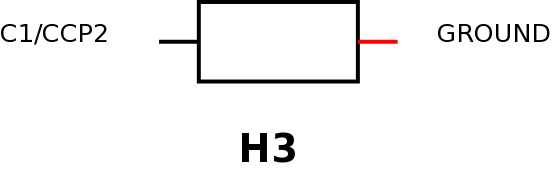

The final one (H3) looks like this:
QwikFlash board H3 header
